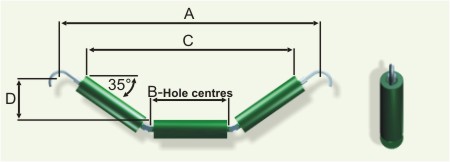

3 ROLL LINK SUSPENDED 'GARLAND'
SERIES 25 - 'J' type hook

Ø 127 STEEL ROLLERS

BELT
WIDTH		 A B C D MASS
ROLL ROTATING IDLER SET
600 890 260 658 85 4.1 3.2 16.3
750 1040 310 790 120 4.4 3.4 17.2
900 1190 360 922 155 4.6 3.6 17.7
1050 1340 410 1054 190 5.2 4.0 19.5
1200 1490 470 1212 222 6.0 4.6 21.9

Notes
1. Dimensions in mm, Masses in kg
2. Idler dimensions to S.A.B.S. 1313 - 1998 'Conveyor Belt Idlers'
3. Only Ø127 Series 25 'Link Suspended' idlers covered by SABS 1313 - 1998

Information subject to change without notice. Please obtain certified information from vender.
