| FLAT CARRY IDLER SERIES 25 - Single Roll |
|
Ø 127 STEEL ROLLERS
| BELT WIDTH |

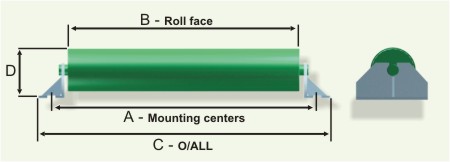

A | B | C | D | MASS | ACAD Drawing |
|||
| FRAME | ROLL | ROTATING | IDLER SET | ||||||
| 400 | 634 | 484 | 684 | 160 | 1.4 | 8.9 | 7.0 | 11.7 | Click Here |
| 450 | 686 | 536 | 736 | 160 | 1.4 | 9.7 | 7.6 | 12.5 | Click Here |
| 500 | 736 | 586 | 786 | 160 | 1.4 | 10.4 | 8.2 | 13.2 | Click Here |
| 600 | 838 | 688 | 888 | 160 | 1.4 | 12.0 | 9.3 | 14.8 | Click Here |
| 750 | 990 | 840 | 1040 | 160 | 1.4 | 14.3 | 11.1 | 17.1 | Click Here |
| 900 | 1144 | 994 | 1194 | 160 | 1.4 | 16.7 | 12.9 | 19.5 | None |
| 1050 | 1296 | 1146 | 1346 | 160 | 1.4 | 19.0 | 14.6 | 21.8 | None |
| 1200 | 1448 | 1298 | 1498 | 160 | 1.4 | 21.4 | 16.4 | 24.2 | None |
| 1350 | 1600 | 1450 | 1650 | 160 | 1.4 | 23.7 | 18.1 | 26.5 | None |
| 1500 | 1752 | 1602 | 1802 | 160 | 1.4 | 26.1 | 19.9 | 28.9 | None |
| 1650 | 1904 | 1754 | 1954 | 160 | 1.4 | 28.4 | 21.7 | 31.2 | None |
| 1800 | 2058 | 1908 | 2108 | 160 | 1.4 | 30.8 | 23.4 | 33.6 | None |
Ø 152 STEEL ROLLERS
| BELT WIDTH |
A | B | C | D | MASS | ACAD Drawing |
|||
| FRAME | ROLL | ROTATING | IDLER SET | ||||||
| 400 | 634 | 484 | 684 | 172.5 | 1.4 | 10.6 | 8.7 | 13.4 | Click Here |
| 450 | 686 | 536 | 736 | 172.5 | 1.4 | 11.6 | 9.5 | 14.4 | Click Here |
| 500 | 736 | 586 | 786 | 172.5 | 1.4 | 12.5 | 10.2 | 15.3 | Click Here |
| 600 | 838 | 688 | 888 | 172.5 | 1.4 | 14.4 | 11.7 | 17.2 | Click Here |
| 750 | 990 | 840 | 1040 | 172.5 | 1.4 | 17.2 | 13.9 | 20.0 | Click Here |
| 900 | 1144 | 994 | 1194 | 172.5 | 1.4 | 20.0 | 16.2 | 22.8 | Click Here |
| 1050 | 1296 | 1146 | 1346 | 172.5 | 1.4 | 22.8 | 18.4 | 25.6 | Click Here |
| 1200 | 1448 | 1298 | 1498 | 172.5 | 1.4 | 25.6 | 20.6 | 28.4 | Click Here |
| 1350 | 1600 | 1450 | 1650 | 172.5 | 1.4 | 28.4 | 22.9 | 31.2 | Click Here |
| 1500 | 1752 | 1602 | 1802 | 172.5 | 1.4 | 31.3 | 25.1 | 34.1 | Click Here |
| 1650 | 1904 | 1754 | 1954 | 172.5 | 1.4 | 34.1 | 27.3 | 36.9 | Click Here |
| 1800 | 2058 | 1908 | 2108 | 172.5 | 1.4 | 36.9 | 29.6 | 39.7 | Click Here |
Notes
1. Dimensions in mm, Masses in kg
2. Idler dimensions to S.A.B.S. 1313 - 1998 'Conveyor Belt Idlers'Information subject to change without notice. Please obtain certified information from vender.
