| CEMA E 20° PICKING IDLER |
|
|
|
|
6" ROLL
| BELT WIDTH |
IDLER PART NUMBER |
ROLL PART NUMBER |

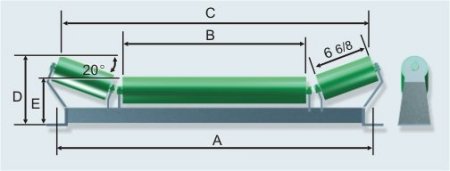

A | B | C | D | E ±1/4" |
IDLER WEIGHT |
ROLL WEIGHT |
ROLL ROTATING WEIGHT |
SHAFT Ø |
BRG TYPE |
|
36 |
ME6-3620-PIC |
ME-PC-6-36 |
45 |
27 1/8 |
42 |
13 |
10 3/4 |
89 |
17 |
28 |
1-5/8 |
6308 |
|
42 |
ME6-4220-PIC |
ME-PC-6-42 |
51 |
33 1/8 |
48 |
13 |
10 3/4 |
106 |
22 |
32 |
1-5/8 |
6308 |
|
48 |
ME6-4820-PIC |
ME-PC-6-48 |
57 |
39 1/8 |
54 |
13 |
10 3/4 |
123 |
27 |
35 |
1-5/8 |
6308 |
|
54 |
ME6-5420-PIC |
ME-PC-6-54 |
63 |
45 1/8 |
60 |
13 |
10 3/4 |
144 |
32 |
39 |
1-5/8 |
6308 |
|
60 |
ME6-6020-PIC |
ME-PC-6-60 |
69 |
51 1/8 |
66 |
13 |
10 3/4 |
162 |
37 |
43 |
1-5/8 |
6308 |
|
72 |
ME6-7220-PIC |
ME-PC-6-72 |
81 |
57 1/8 |
72 |
13 3/4 |
11 1/2 |
183 |
42 |
47 |
1-5/8 |
6308 |
|
84 |
ME6-8420-PIC |
ME-PC-6-84 |
93 |
63 1/8 |
78 |
14 |
11 3/4 |
203 |
48 |
51 |
1-5/8 |
6308 |
|
96 |
ME6-9620-PIC |
ME-PC-6-96 |
105 |
69 |
84 |
14 |
11 3/4 |
265 |
59 |
59 |
1-5/8 |
6308 |
7" ROLL
| BELT WIDTH |
IDLER PART NUMBER |
ROLL PART NUMBER |
A | B | C | D | E ±1/4" |
IDLER WEIGHT |
ROLL WEIGHT |
ROLL ROTATING WEIGHT |
SHAFT Ø |
BRG TYPE |
|
36 |
ME7-3620-PIC |
ME-PC-7-36 |
45 | 27 1/8 | 40 | 13 1/2 | 11 1/4 | 99 | 20 | 34 | 1-5/8 | 6308 |
|
42 |
ME7-4220-PIC |
ME-PC-7-42 |
51 | 33 1/8 | 46 | 13 1/2 | 11 1/4 | 118 | 26 | 39 | 1-5/8 | 6308 |
|
48 |
ME7-4820-PIC |
ME-PC-7-48 |
57 | 39 1/8 | 52 | 13 1/2 | 11 1/4 | 139 | 32 | 44 | 1-5/8 | 6308 |
|
54 |
ME7-5420-PIC |
ME-PC-7-54 |
63 | 45 1/8 | 58 | 14 | 11 1/4 | 163 | 38 | 49 | 1-5/8 | 6308 |
|
60 |
ME7-6020-PIC |
ME-PC-7-60 |
69 | 51 1/8 | 64 | 13 1/2 | 11 1/4 | 184 | 44 | 54 | 1-5/8 | 6308 |
|
72 |
ME7-7220-PIC |
ME-PC-7-72 |
81 | 57 1/8 | 70 | 14 | 12 | 208 | 51 | 59 | 1-5/8 | 6308 |
|
84 |
ME7-8420-PIC |
ME-PC-7-84 |
93 | 63 1/8 | 76 | 15 | 12 1/4 | 227 | 56 | 63 | 1-5/8 | 6308 |
|
96 |
ME7-9620-PIC |
ME-PC-7-96 |
105 | 69 | 82 | 14 1/2 | 12 1/4 | 171 | 33 | 73 | 1-5/8 | 6308 |
NOTES:
1. Also available with wide mounting centers = A + 6"
2. Dimensions in Inches, Weights in lbs
3. Specify 'center' or 'wing' rollers when ordering replacement rollers
4. The part number for a frame only is the idler part number with the suffix FR
5. Wing rollers Ø5" or Ø6" - 6-6/8" Face - 6205 BearingInformation subject to change without notice. Please obtain certified information from vender.
