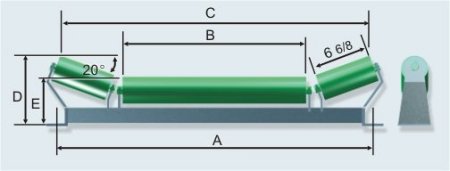

| CEMA C 20° PICKING IDLER |
|
|
|
|
 |
5" ROLL
| BELT WIDTH |
IDLER PART NUMBER |
ROLL PART NUMBER |
A | B | C | D | E ±1/4" |
IDLER WEIGHT |
ROLL WEIGHT |
ROLL ROTATING WEIGHT |
SHAFT Ø |
BRG TYPE |
| 24 | MC4-2420-PIC | MC-PC-4-24 | 33 | 15 3/8 | 30 1/4 | 10 1/4 | 8 | 78 | 17 | 28 | 1-1/4* - 1 | 6205 |
| 30 | MC4-3020-PIC | MC-PC-4-30 | 39 | 21 1/8 | 36 | 10 1/4 | 8 | 86 | 22 | 32 | 1-1/4* - 1 | 6205 |
|
36 |
MC4-3620-PIC |
MC-PC-4-36 |
45 |
27 1/8 |
42 |
10 1/4 |
8 |
95 |
27 |
35 |
1-3/8* - 1-1/8 |
6306 |
|
42 |
MC4-4220-PIC |
MC-PC-4-42 |
51 |
33 1/8 |
48 |
11 3/4 |
8 1/2 |
102 |
32 |
39 |
1-3/8* - 1-1/8 |
6306 |
|
48 |
MC4-4820-PIC |
MC-PC-4-48 |
57 |
39 1/8 |
54 |
11 3/4 |
8 1/2 |
110 |
37 |
43 |
1-3/8* - 1-1/8 |
6306 |
|
54 |
MC4-5420-PIC |
MC-PC-4-54 |
63 |
45 1/8 |
60 |
11 |
8 3/4 |
117 |
42 |
47 |
1-5/8* - 1-1/8 |
6306 |
|
60 |
MC4-6020-PIC |
MC-PC-4-60 |
69 |
51 1/8 |
66 |
11 |
8 3/4 |
124 |
48 |
51 |
1-5/8* - 1-1/8 |
6306 |
5" ROLL
| BELT WIDTH |
IDLER PART NUMBER |
ROLL PART NUMBER |
A | B | C | D | E ±1/4" |
IDLER WEIGHT |
ROLL WEIGHT |
ROLL ROTATING WEIGHT |
SHAFT Ø |
BRG TYPE |
| 24 | MC5-2420-PIC | MC-PC-5-24 | 33 | 15 3/8 | 30 1/4 | 10 3/4 | 8 1/2 | 78 | 17 | 28 | 1-1/4* - 1 | 6205 |
| 30 | MC5-3020-PIC | MC-PC-5-30 | 39 | 21 1/8 | 36 | 10 3/4 | 8 1/2 | 86 | 22 | 32 | 1-1/4* - 1 | 6205 |
|
36 |
MC5-3620-PIC |
MC-PC-5-36 |
45 |
27 1/8 |
42 |
10 3/4 |
8 1/2 |
95 |
27 |
35 |
1-3/8* - 1-1/8 |
6306 |
|
42 |
MC5-4220-PIC |
MC-PC-5-42 |
51 |
33 1/8 |
48 |
11 1/4 |
9 |
102 |
32 |
39 |
1-3/8* - 1-1/8 |
6306 |
|
48 |
MC5-4820-PIC |
MC-PC-5-48 |
57 |
39 1/8 |
54 |
11 1/4 |
9 |
110 |
37 |
43 |
1-3/8* - 1-1/8 |
6306 |
|
54 |
MC5-5420-PIC |
MC-PC-5-54 |
63 |
45 1/8 |
60 |
11 1/2 |
9 1/4 |
117 |
42 |
47 |
1-5/8* - 1-1/8 |
6306 |
|
60 |
MC5-6020-PIC |
MC-PC-5-60 |
69 |
51 1/8 |
66 |
11 1/2 |
9 1/4 |
124 |
48 |
51 |
1-5/8* - 1-1/8 |
6306 |
6" ROLL
| BELT WIDTH |
IDLER PART NUMBER |
ROLL PART NUMBER |
A | B | C | D | E ±1/4" |
IDLER WEIGHT |
ROLL WEIGHT |
ROLL ROTATING WEIGHT |
SHAFT Ø |
BRG TYPE |
| 24 | MC6-2420-PIC | MC-PC-6-24 | 33 | 9 1/2 | 28 1/4 | 11 1/2 | 9 | 88 | 20 | 34 | 1-1/4* - 1 | 6205 |
| 30 | MC6-3020-PIC | MC-PC-6-30 | 39 | 11 3/8 | 34 | 11 1/4 | 9 | 97 | 26 | 39 | 1-1/4* - 1 | 6205 |
|
36 |
MC6-3620-PIC |
MC-PC-6-36 |
45 | 13 3/8 | 40 | 11 1/4 | 9 | 107 | 32 | 44 | 1-3/8* - 1-1/8 |
6306 |
|
42 |
MC6-4220-PIC |
MC-PC-6-42 |
51 | 15 3/8 | 46 | 11 3/4 | 9 1/2 | 116 | 38 | 49 | 1-3/8* - 1-1/8 |
6306 |
|
48 |
MC6-4820-PIC |
MC-PC-6-48 |
57 | 17 3/4 | 52 | 11 3/4 | 9 1/2 | 124 | 44 | 54 | 1-3/8* - 1-1/8 |
6306 |
|
54 |
MC6-5420-PIC |
MC-PC-6-54 |
63 | 19 3/4 | 58 | 12 | 9 3/4 | 132 | 51 | 59 | 1-5/8* - 1-1/8 |
6306 |
|
60 |
MC6-6020-PIC |
MC-PC-6-60 |
69 | 22 | 64 | 12 | 9 3/4 | 139 | 56 | 63 | 1-5/8* - 1-1/8 |
6306 |
NOTES:
1. Also available with wide mounting centers = A + 6"
2. Dimensions in Inches, Weights in lbs
3. Specify 'center' or 'wing' rollers when ordering replacement rollers
4. The part number for a frame only is the idler part number with the suffix FR
5. Wing rollers Ø5" or Ø6" - 6-6/8" Face - 6205 BearingInformation subject to change without notice. Please obtain certified information from vender.
